Gain (egui, aspect-locked)

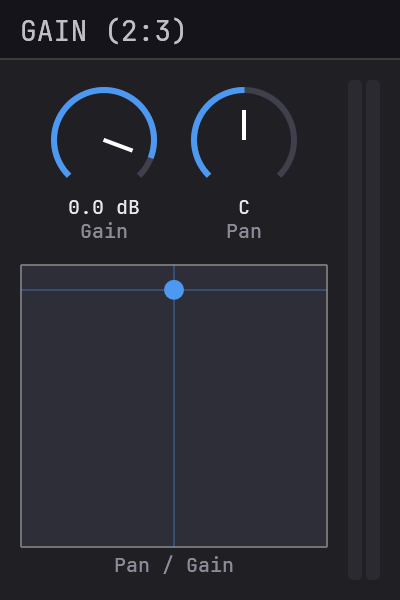

gain-egui-aspect plugin

The egui gain example with a 2:3 aspect-ratio lock: the editor advertises the ratio so the host keeps width and height proportional on every resize edge.

Source: examples/truce-example-gain-egui-aspect/.

#What it demonstrates

  • The EguiEditor builder: .resizable(true), .min_size(..), .max_size(..), and .aspect_ratio(Some((2, 3))), with the window size and both bounds sitting exactly on 2:3 so the lock holds across the whole range
  • Aspect-lock host coverage: honored by CLAP, VST3, AU v3, LV2, and the standalone host; VST2 and AAX ignore it
  • truce_egui::widgets: param_knob, a two-axis param_xy_pad bound to Pan and Gain, and a stereo level_meter
  • #[meter] MeterSlot fields fed from process() via context.set_meter(..) and buffer.output_peak(ch)
  • Editor theming with truce_egui::theme::dark() and .with_font(JETBRAINS_MONO)
  • Constant-power-style pan law layered on smoothed dB gain (smooth = "exp(5)", db_to_linear)

#Parameters

Name Range Unit
Gain -60 to +6 dB
Pan -1 to +1 pan

Two meter slots (left/right output peak) feed the level meter; they are display-only, not automatable parameters.
